Product Description

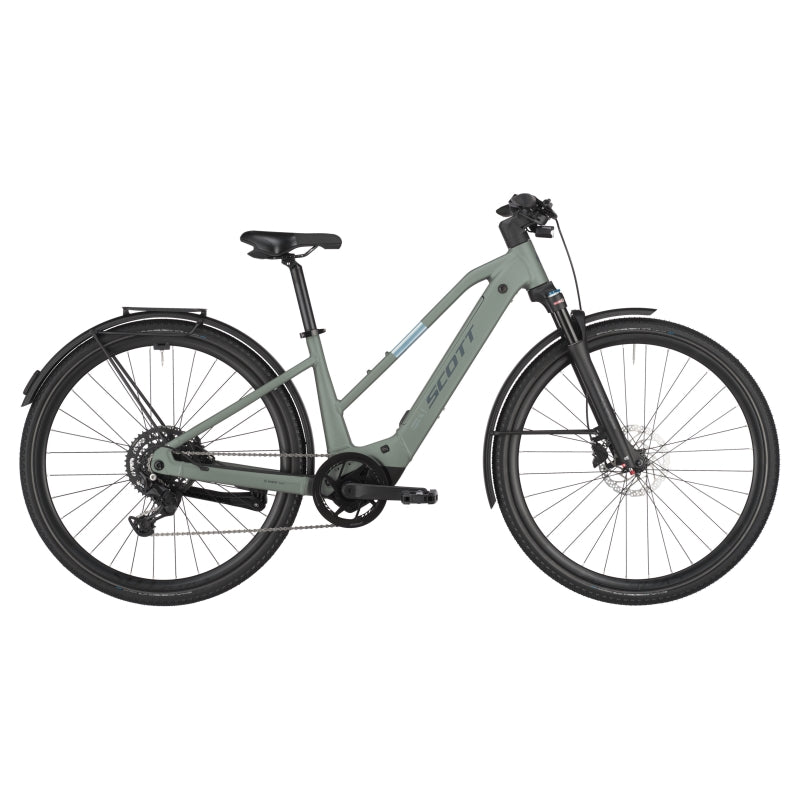

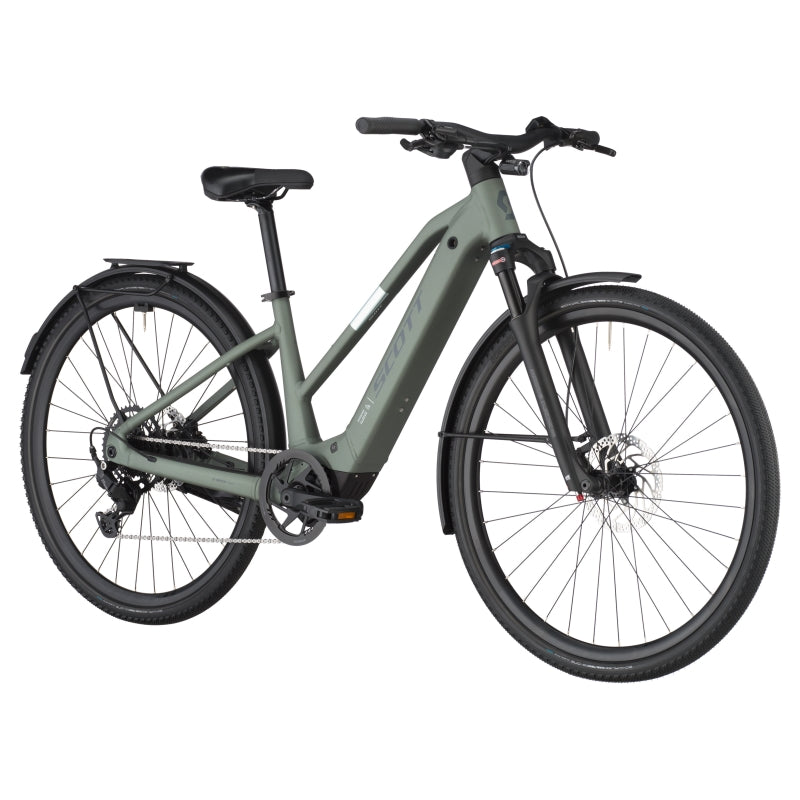

Passage eRIDE is the ALL-NEW SCOTT electric urban bike designed for easy, hassle-free riding in the city.
Equipped with the lightweight Bosch SX motor and 400Wh battery it gives you a feeling of weightlessness as you ride, while giving you the power to go further. A clean cockpit and the minimalistic rear rack complete the picture, adding even more style to Passage.
Your Passage through the city just became easier.
Key Features
- Shimano Cues 9 Speed
- Lezyne front light / Syncros integrated rear light
- Racktime Micro rear rack, Snap it 2.0 compatible, 8Kg
- Shimano disc brakes
Product Specification
| Handlebar | Syncros Welded Alloy Combo 680mm / Backsweep 9 / Upsweep 8 / 70mm / with front Light mount |
| Headset | Acros / 1.5- 1.5 semi integ. OD 50/61mm / ID 44/55mm |
| Pedals | Marwi SP-827 |
| Rack & Fenders | Racktime Micro Rack SnapIt 2.0 8KG , Alumee alloy profile Fender |
| Saddle | Syncros Capilano |
| Seatpost | Syncros M3.0 / 31.6 |
| Brakes | Shimano BR-MT200 Disc |
| Brakes Rotor | Front: SM-RT30 CL 180mm / Rear: SM-RT30 CL 160mm |
| Cassette | Shimano LG300 / 11-46T |
| Chain | Shimano LG500 |
| Chainguide | Syncros |
| Chainring | FSA 38T |
| Crankset | FSA CK-220 170mm |
| Rear Gear | Shimano CUES RDU4000GS 9 Speed |
| Shifters | Shimano CUES SLU4009RC / 9 Speed |
| Drive Unit | Bosch Performance SX EU: 25kmh |
| E Motor Battery | Compact Tube 400Wh |
| E Motor Display | Bosch Purion 200 |
| E Motor Sensors | Bosch |
| Lights | Lezyne Fusion E550SM front light Rear Supernova TL3Z |
| Fork | SR Suntour NRX32-E Air LO R / Tapered / 15x100 bolt Axle / Remote Lock Out / Steel Steerer / 75mm Travel |
| Frame | Alloy S-L=29" / 6061 Alloy custom butted tubing Top extraction battery |
| Kick Stand | Hebie Kickstand |
| Front Hub | Shimano HBTC50015B CL / 15x100mm |
| Rear Hub | Shimano FHTC500HMB CL / 12x142mm |
| Rims | Syncros X15 Disc |
| Spokes | Black Spokes |
| Tyres | Schwalbe G-One Overland 365 Performance 700x45C |
