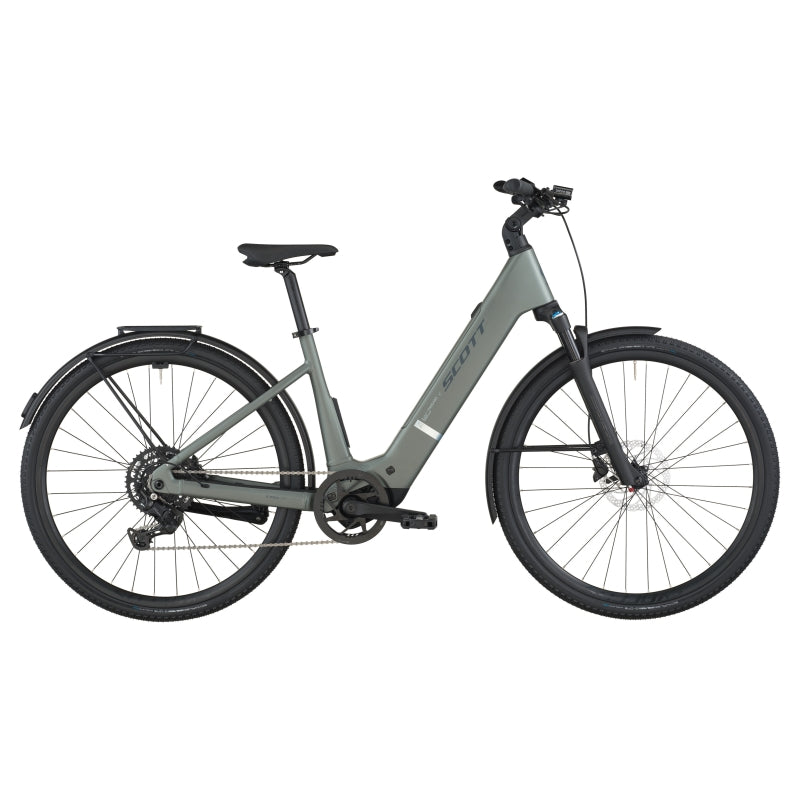

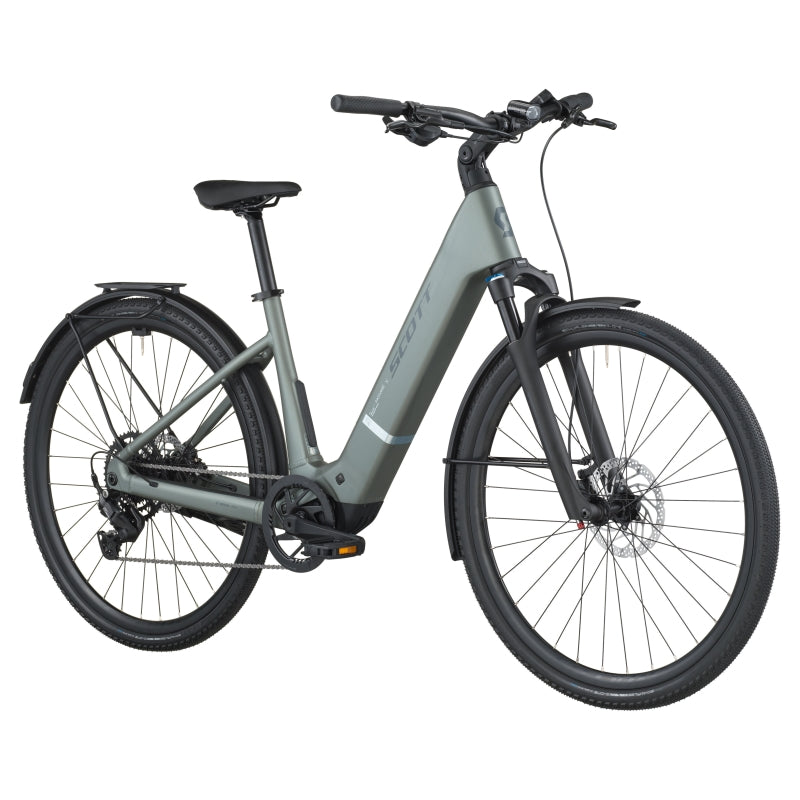

Scott Passage 20 Wave
Scott Passage 20 Wave
Click and Collect
To collect your order, please bring:
• The order confirmation email
• Matching photo ID (driver’s license or passport)
• The credit card used to pay for the order
You will be notified when your order is ready to collect.
Please note, only the person who placed the order can collect it.
Delivery
Delivery is available on almost all of the products you can find on our web site.
Currently we're using Australia Post for delivery. Please see our Shipping Policy page for more information.
Delivery exclusions;
- Bicycles
- Bulky Items
- Dangerous goods
If you have any questions regarding shipping please contact us before ordering.
Returns
All items purchased are covered by a 30 day returns policy. Please see our Returns and Refunds Policy page for details.
Warranty
Every product sold by us is covered by manufacturers warranties and by Australian consumer laws. To enquire about a warranty on a product purchased from us please contact us via our Contact page.
Product Description
The center of it all is the lightweight yet strong Bosch SX motor unit and tidy 400Wh battery. On the ride, the combo provides effortless performance on the pedals, accelerating smoothly over hills, delivering confident torque from a stop, and supplying the range to power you to your destination on the other side of town.
Handling is also light and easy, feeling more like a traditional bike than cumbersome and sluggish compared to a heavier urban E-Bike. The motor unit is just 2kg, low in the frame, and compact enough to provide confidence when navigating and a more natural pedaling style thanks to its favorable Q-factor.
We equipped this Passage 20 with a 75mm suspension fork to soften rough pavement on your routes and 45mm tires to add stability and durability no matter what comes your way. Its 9-speed drivetrain gives you the gearing range to ride around town like a pro, and the rear rack sets you up to stow the day's essentials.
Key Features
- Passage eRIDE Alloy Frame
- Bosch SX, CT400 SmartSystem Engine System
- SR Suntour 75mm Fork
- Shimano Cues 9 Speed Drivetrain
- Shimano Disc Brakes
- Lezyne front light / Syncros integrated rear lights
- Racktime Micro rear rack, Snap it 2.0 compatible, 8Kg
Please note that bike specifications are subject to change without prior notice.
Product Specification
| Handlebar | Syncros Welded Alloy Combo 680mm Backsweep 9 Upsweep 8 70mm with front Light mount |
| Headset | Acros 1.5- 1.5 semi integ. OD 50/61mm ID 44/55mm |
| Pedals | Marwi SP-827 |
| Rack | Racktime Micro Rack SnapIt 2.0 8KG |
| Saddle | Syncros Capilano |
| Seatpost | Syncros M3.0 31.6 |
| Brakes | Shimano BR-MT200 Disc |
| Brakes Rotor | Front: SM-RT30 CL 180mm Rear: SM-RT30 CL 160mm |
| Cassette | Shimano LG300 11-46T |
| Chain | Shimano LG500 |
| Chainguide | Syncros |
| Chainring | FSA 38T |
| Crankset | FSA CK-220 170mm |
| Rear Derailleur | Shimano CUES RDU4000GS 9 Speed |
| Shifters | Shimano CUES SLU4009RC 9 Speed |
| Drive Unit | Bosch Performance Line SX (BDU314Y) EU: 25kmh |
| E Motor Battery | Compact Tube 400Wh |
| E Motor Charger | 2A Charger |
| E Motor Display | Bosch Purion 200 |
| Lights | Lezyne Fusion E550SM front light Rear Supernova TL3Z |
| Fork | SR Suntour NRX32-E Air LO R Tapered 15x100 bolt Axle Remote Lock Out Steel Steerer 75mm Travel |
| Frame | Alloy S-L=29" 6061 Alloy custom butted tubing Top extraction battery |
| Approx. Weight | 22.2 kg |
| Extras | Alumee alloy profile Fender Passage Kickstand |
| Front Hub | Shimano HBTC50015B CL 15x100mm |
| Front Tyre | Schwalbe G-One Overland 365 Performance 700x45C |
| Rear Hub | Shimano FHTC500HMB CL 12x142mm |
| Rear Tyre | Schwalbe G-One Overland 365 Performance 700x45C |
| Rims | Syncros X15 Disc |
| Spokes | Black Spokes |
