Product Description

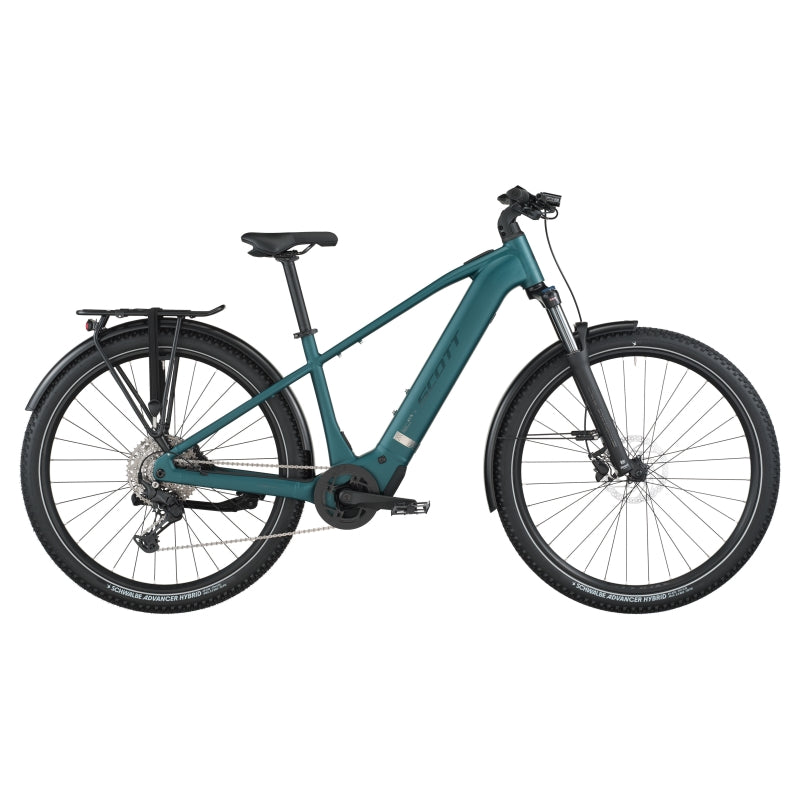

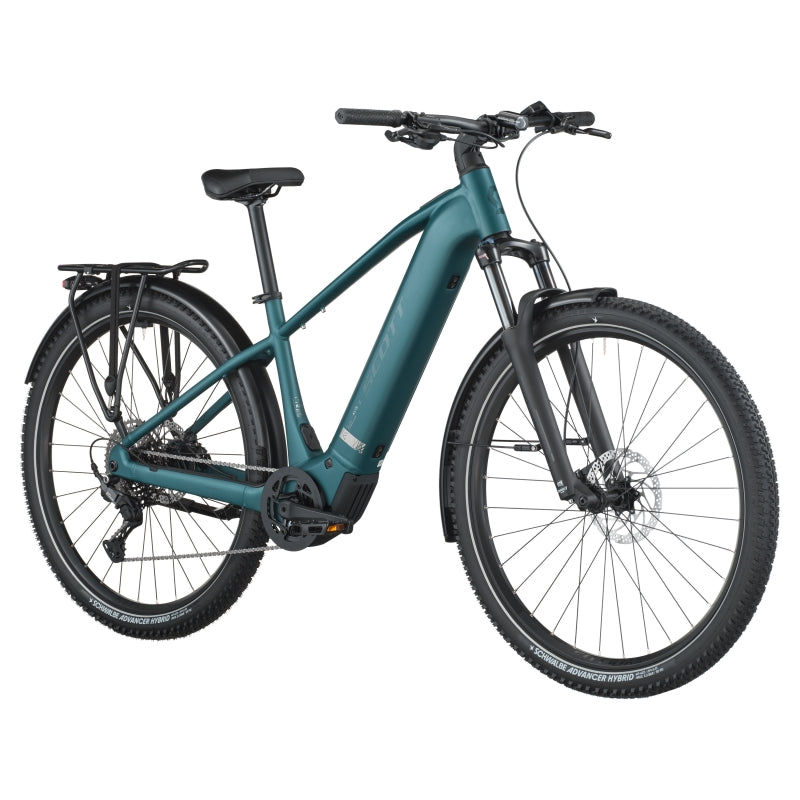

The SCOTT AXIS eRIDE is equipped with the Bosch Performance motor and a 540Wh battery, perfect for weekend explorations in the outdoors. Wanna bring the kids and dogs with you? No problem. Thanks to the new Syncros Heavy Duty rack that can carry up to 27kg, and the new Syncros Thru-Axle enabling you to tow cargo trailers, you can load up the Axis with everything you need to make the most of your rides.
Axis comes in two sleek frame shapes, with the Wave allowing for a lower standover height to make mounting and dismounting a breeze. With the same features and handling characteristics, you can simply pick the one that fits you best.
As comfy as you'd like. Ride Axis.
Key Features
- Axis eRIDE Alloy Frame
- Bosch Performance, PT540 SmartSystem Engine System
- Suntour 120mm Fork
- Shimano CUES 10 Speed Drivetrain
- Shimano Disc Brakes
- Syncros bike trailer adapter Lezyne front / Syncros rear-rack integrated rear Lights / Curana alloy fenders
- Racktime carrier Snap It 2.0 compatible, 27KG
Product Specification
| Grips | Syncros Lock On Grip |
| Handlebar | Syncros 3.0 720mm 31.8mm Backsweep 9 12mm rise |
| Headset | Acros 1.5- 1.5 semi integ. OD 50/61mm ID 44/55mm |
| Pedals | VP VPE-506 |
| Rack | Racktime Micro Rack SnapIt 2.0 25KG |
| Saddle | Syncros Capilano |
| Seatpost | Syncros 3.0 31.6mm |
| Stem | Syncros with front Light mount |
| Brakes | Shimano BR-MT200 Disc Brakes |
| Brakes Rotor | Front: SM-RT30 CL 180mm Rear: RT-EM300 CL 180mm |
| Cassette | Shimano CS-LG40010 11-48T 10 Speed |
| Chain | Shimano LG500 |
| Chainring | Miranda 36T w/Chain Guard |
| Crankset | FSA CK-220 165mm |
| Rear Derailleur | Shimano CUES RD-U6000GS 10 Speed |
| Shifters | Shimano SL-U600010RC |
| Drive Unit | Bosch Performance Line (BDU346Y) EU: 25kmh |
| E Motor Battery | PowerTube 540Wh |
| E Motor Charger | 2A Charger |
| E Motor Display | Bosch Purion 200 |
| Lights | Front Lezyne Hecto E65 Rear Super Bright Lezyne Light |
| Fork | SR Suntour XCM34 Coil Tapered 15x110 TA 120mm Travel |
| Frame | Alloy S-XL=29 6061 Alloy custom butted tubing Side extraction battery UDH Interface 12x148mm with 52mm Chainline |
| Approx. Weight | 28.2 kg |
| Extras | Curana alloy profile Fender Ursus Kickstand |
| Front Hub | Shimano HBTC50015BB 15x110mm |
| Rear Hub | Shimano FHTC500HMBB 148x12mm |
| Rims | Syncros X18 Disc |
| Spokes | Stainless Black |
| Tyres | Schwalbe Advancer 60-622 Wired |
