Product Description
Please note that bike specifications are subject to change without prior notice.
Key features
- 125-135 cm / 49-53" bodyheight
- 24" wheels with fast-rolling tires
- Race-ready 9-speed drivetrain
- Shimano hydr disc brake
- 60mm Suspension Fork, kids tuned
- Perfect fit for young racers!
Frame
KIDS24 disc, Alloy 6061, custom tubing, semi int. CBR, BB68, SCOTT dropout, PM

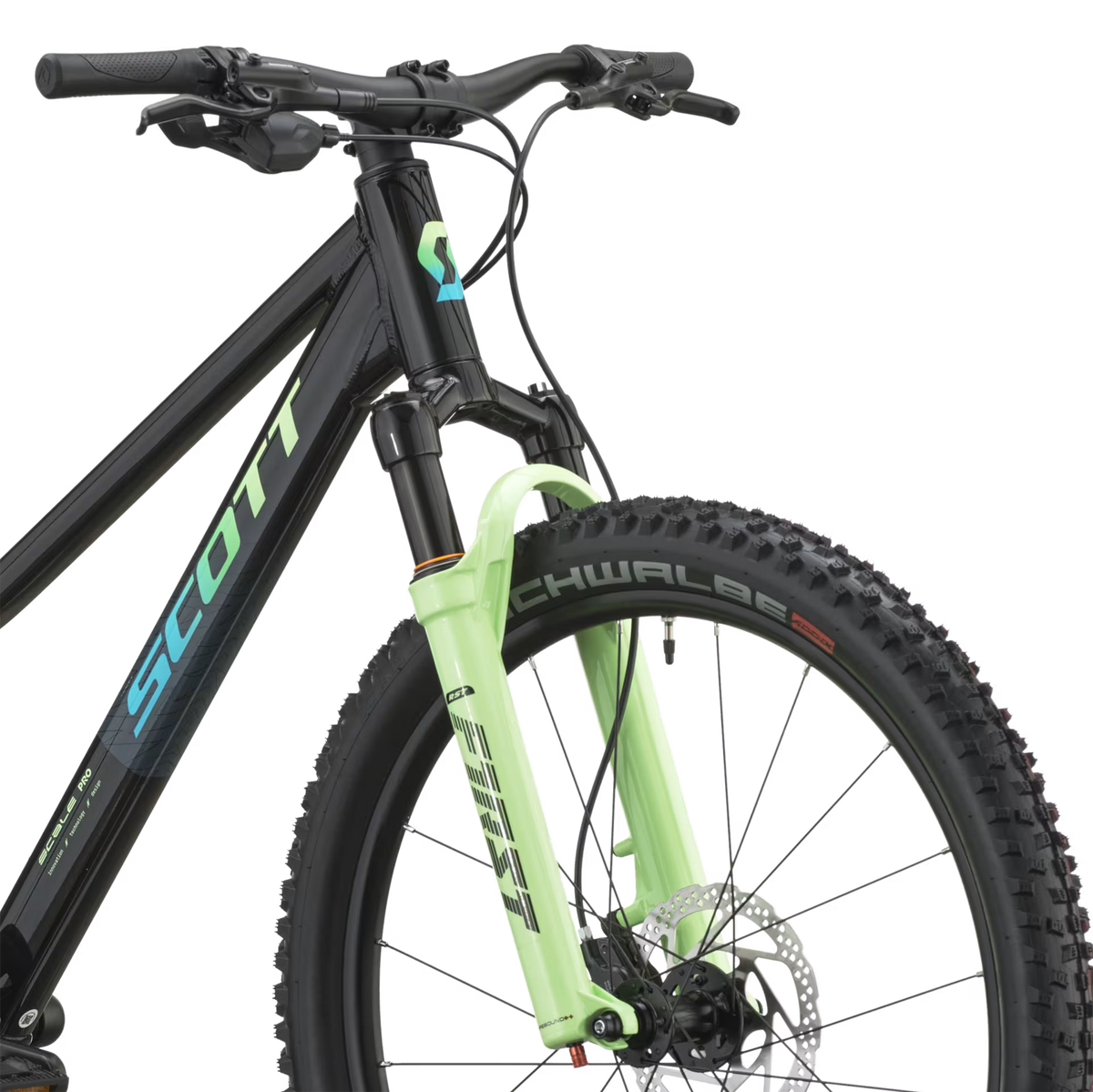

Fork
RST F1RST 24", 60mm
Travel
60mm
Headset
Feimin 48/28.6/44/30, sealed bearings, semi int.
Rear Derailleur
Microshift ADVENT super short cage, ratchet-and-pawl clutch, 9 Speed
Shifters
Microshift ADVENT, quick trigger, rubber pad, clamp, 9 Speed
Brakes
Shimano BL-UR405 Brakelever Short Reach, BR-MT410 2-Piston
Crankset
Prowheel, Alloy Crank, 30T, w/CG PVG single cover
Front Disc Rotor
Shimano SM-RT56 6B, 160mm
Rear Disc Rotor
Shimano SM-RT56 6B, 160mm
BB-Set
Feimin, BB68, cartridge, square taper
Handlebar
Leadtec Kids riser bar alloy DB, D:19, 25mm rise, 31.8mm clamp, BS 9degree
H'stem
Leadtec, Alloy, -/+7degree, 31.8mm clamp
Pedals
Kids Pedal medium, w/Reflector
Seat
Syncros KIDS III Incl. Seatpost 27.2mm, 300mm
Front Hub
Formula, Seal Bearing, 6 bolt, 20H, 5x100mm
Rear Hub
Formula, Seal Bearing, 24H, 5x135mm
Chain
KMC X9
Cassette
Microshift ADVENT H-Series 11-38T, 9 Speed
Front Rim
Syncros MD19 24'' 20H
Rear Rim
Syncros MD19 24'' 24H
Approx weight in KG
10.5 w/o Pedals
Approx weight in LBS
23.15 w/o Pedals
Grips
Syncros Kids Grips ID19, OD 255 , Lock on
Front Tire
Schwalbe Rocket Ron EVO, Super Race, TLE, 24 x 2.35, ADDIX Speed, 67EPI
Rear Tire
Schwalbe Rocket Ron EVO, Super Race, TLE, 24 x 2.35, ADDIX Speed, 67EPI
Max. System Weight
70kgThe overall weight includes the bike, the rider, the equipment and possible additional luggage.
